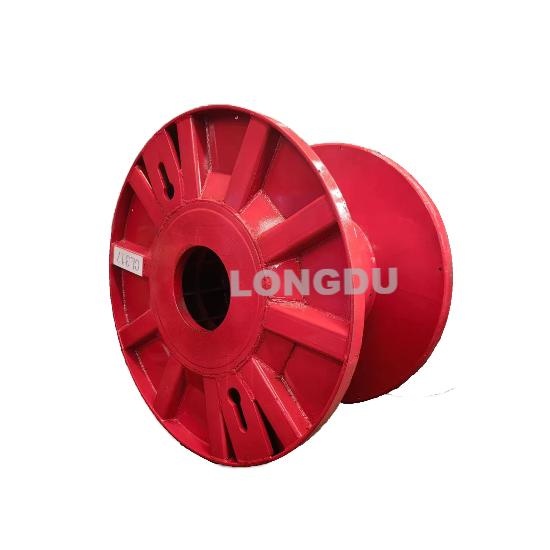

Heavy duty steel wire spool
PND100-1000 Steel Wire bobbin
1.According to customer’s specification or GB4004-83,B/T7600,3-94,DIN46397 standard.
2.Refined or semi-refined,high strength and rigidity.
3.For steel wire drawing plants.
Main Technical Specifications
1.According to customer’s specification or GB4004-83,B/T7600,3-94,DIN46397 standard.
2.Refined or semi-refined,high strength and rigidity.
3.For steel wire drawing plants.
Main Technical Specifications
|
Model |
φA |
φB |
C |
D |
φE |
G |
φH |
|
PN300 |
300 |
133 |
178 |
194 |
25 |
80 |
13 |
|
PN400 |
400 |
159 |
229 |
245 |
40 |
120 |
16 |
|
PN500 |
500 |
203 |
300 |
336 |
40 |
120 |
20 |
|
PN630 |
630 |
245 |
400 |
450 |
40 |
180 |
25 |
|
PN700 |
700 |
273 |
450 |
560 |
50 |
360 |
16 |
|
PN800 |
800 |
320 |
480 |
560 |
65 |
200 |
20 |
|
PN900 |
900 |
450 |
380 |
500 |
120 |
300 |
60 |
|
PN1000 |
1000 |
400 |
548 |
640 |
60 |
500 |
50 |
|
PN1200 |
1200 |
500 |
460 |
580 |
120 |
500 |
50 |
