punching bobbin

punching bobbin

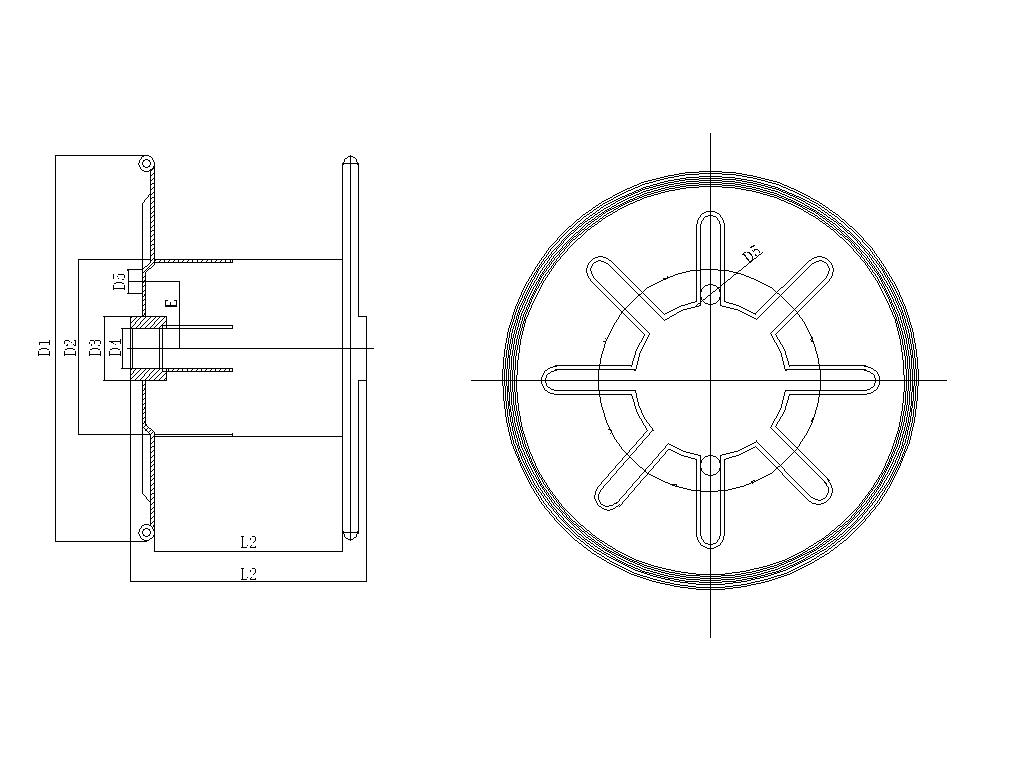

HSC cable reel without cable use of steel plate, stamping and welding,with high strength and good rigidity. Apply for Laying-up machines, stranding machines, extruding machine,used for cable,steel wire,steel rope,copper,aluminum,welding wire ect.


  • Product No.: 20181020104010

Details


Main Technical Specification

Model

D1

D2

D3

D4

D5

E

L1

L2

PN100

100

40

50

28

8-16

40

85

63

PN125

125

50

50

28

8-16

40

95

80

PN160

160

63

50

28

8-16

40

118

100

PN200

200

80

60

36

8-16

40(60)

150

125

PN200

200

100

60

36

8-16

40(60)

150

125

PN250

250

100

60

36

8-16

40(60)

190

160

PN250

250

125

60

36

8-16

40(60)

190

160

PN315

315

125

60

36

8-16

40(60)

236

200

PN315

315

160

60

36

8-16

40(60)

236

200

PN355

355

140

112

56

φ28

71

265

224

PN355

355

180

112

56

φ28

71

265

224

PN400

400

160

112

56

φ28

71

300

250

PN400

400

200

112

56

φ28

71

300

250

PN450

450

180

112

56

φ28

71

335

280

PN450

450

224

112

56

φ28

71

335

280

PN500

500

200

112

56

φ28

71

375

315

PN500

500

250

112

56

φ28

71

375

315

PN560

560

224

112

56

φ28

71

425

355

PN560

560

280

112

56

φ28

71

425

355

PN630

630

350

112

56

φ28

71

475

400

PN630

630

315

112

56

φ28

71

475

400

PN710

710

355

160

80

28-40

160

530

450

PN800

800

400

160

80

28-40

160

600

500

PN900

900

450

160

80

28-40

160

670

560

PN1000

1000

500

160

80

28-40

160

750

630

PN1120

1120

560

160

80

28-40

160

850

710

PN1250

1250

630

160

80

28-40

160

950

800


More dimensions according to your drawing.
